③ Track 1: Teleoperating a Dexterous Hand With One Webcam — and Passing a Clinical Thumb Test

Part 3 of the series · Previous ② · Overview · Next: ④ Baoding balls in RL simulation

Track 1's brief: capture a human hand with a camera and teleoperate the dexterous hand, with motions that cover a clinical hand examination, under a response-speed requirement. We made "clinical examination" concrete as the Kapandji thumb opposition test — the 0–10 scale clinicians use for thumb function: the thumb tip touches, in order, the side of the index proximal phalanx, the side of its middle phalanx, the index tip, middle tip, ring tip, pinky tip, then walks down the pinky over the DIP crease, PIP crease and MCP crease, and finally reaches the distal palmar crease. Full marks come from running the opposition axis all the way, not from pinching hard.

The organisers' Track 1 reference looks like this: RGB-D hand tracking on a monitor, a human hand in front of the camera, and an Apex hand following finger-by-finger. That is the bar we were shooting for; our stack is MediaPipe (optionally fused with D435 depth) → DexPilot IK → Kapandji HUD, not their closed-source UI.

Official Track 1 reference (organiser-provided): skeleton overlay on the operator hand, Apex hand mirroring on the desk.

---

0. Camera Choices: What We Tried

Camera	Connection	How we used it	Verdict
Logitech C920	USB, clipped to the laptop lid	The workhorse. Pointed at the operator's hand for MediaPipe; 33–39 fps on the HUD	RGB is enough when the palm faces the camera in normal light. Cheap, easy to place
Laptop built-in webcam	Built-in UVC	Pointed at the operator when the C920 was busy looking down at the robot (part ⑤)	Works; image quality and angle worse than the C920. The script prefers an external camera; pass --camera N to pick it
RealSense D435	USB 3	--realsense: colour aligned with depth; measured z replaces MediaPipe's relative depth	Noticeably steadier for thumb opposition and mutually occluding fingertips. Must be on USB 3 (blue port / Type-C), never on the same hub as the T265; one oversize stream start wedges it until a hardware reset
RealSense T265	USB	Wanted it as a second viewpoint	It is a tracking camera (dual fisheye + IMU) with no colour + depth, and its librealsense version conflicts with the D435's. Never entered the loop
Insta360 X5	On top of the chassis	The 360° crowd-pulling camera on the cocktail machine; rock-paper-scissors was planned	Never entered the teleoperation chain

The conclusion up front: RGB hand tracking does not need a depth camera. MediaPipe's world_landmarks already give a 3D structure relative to the palm frame that is good enough; a depth camera helps with two things — "thumb Z / opposition / abduction" and drift when the hand is sideways to the camera.

discover_camera() uses v4l2-ctl --list-devices, skips built-in nodes whose names contain USB2.0 HD UVC, Integrated or IR Camera, and prefers an external USB camera. When another process holds the C920 it fails silently — that is what happened on our first run; check fuser /dev/video* and kill the holder.

---

1. Five Ways to Run It

source env_real.sh
python scripts/landmark_teleop.py --side left                 # real hand (motors enabled only after Space, Esc quits)
python scripts/landmark_teleop.py --dry-run                   # camera only, watch the HUD
python scripts/landmark_teleop.py --sim --side left           # drive the hand in the Isaac sandbox, no motors
python scripts/landmark_teleop.py --realsense --side left     # D435 depth replaces MediaPipe z
python scripts/landmark_teleop.py --side left --calib configs/palm_calib.json --record logs/gait/demo.npz

--sim needs a second terminal running the Isaac sandbox (note: env.sh, not env_real.sh):

source env.sh
python scripts/sandbox_hand.py --task PAN-BaodingRotate-Apex-Left-Play-v0 --hand-pose palm_up_cradle

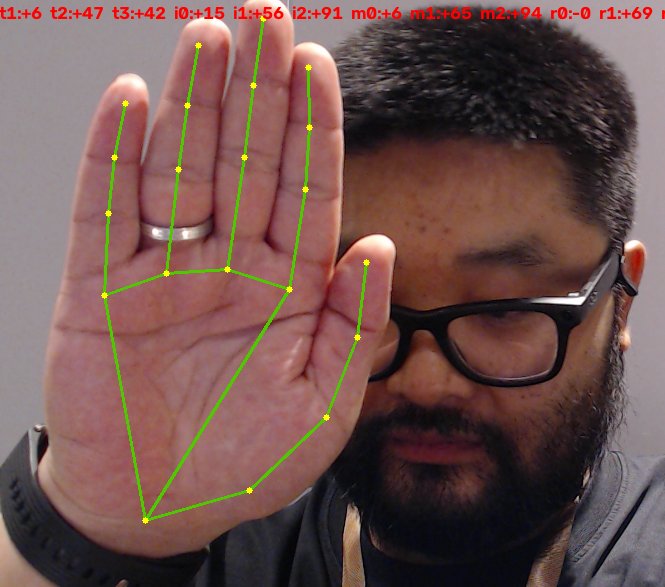

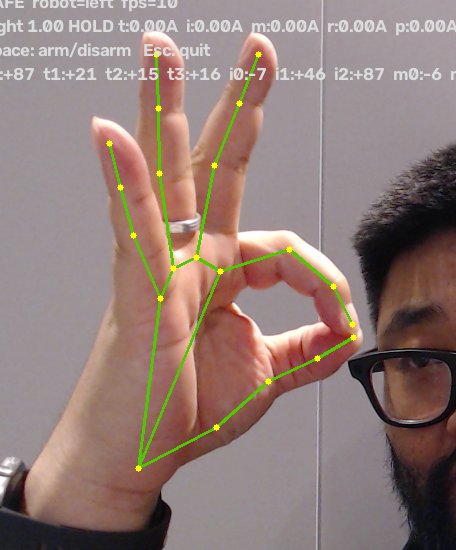

This is what the first HUD looked like at the booth at 14:16 on September 5 (still a green skeleton, no Kapandji score yet):

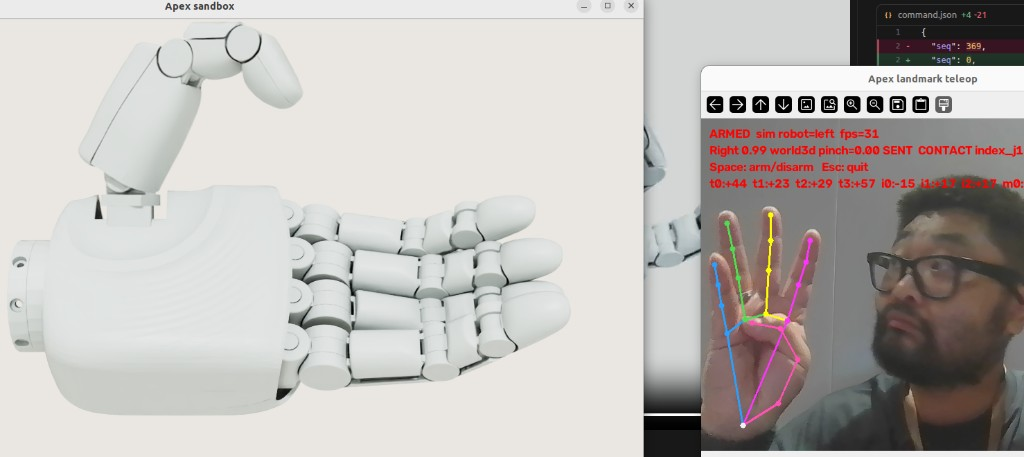

The two processes exchange target and measured angles through files under logs/webui/sandbox/. On the night of September 5 the organisers took the hand back, and this mode is how we spent the whole night on the thumb mapping.

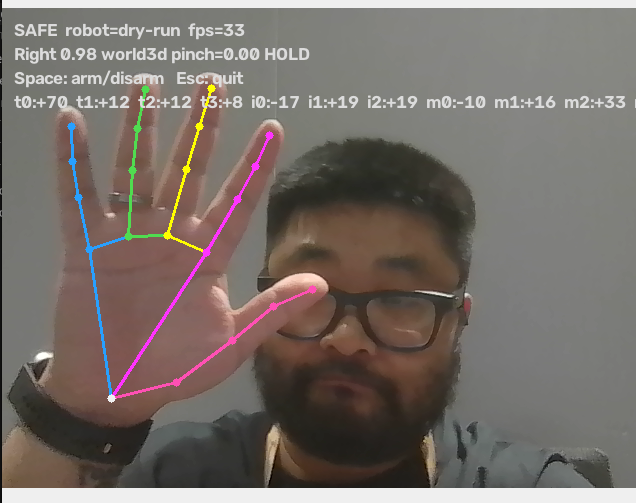

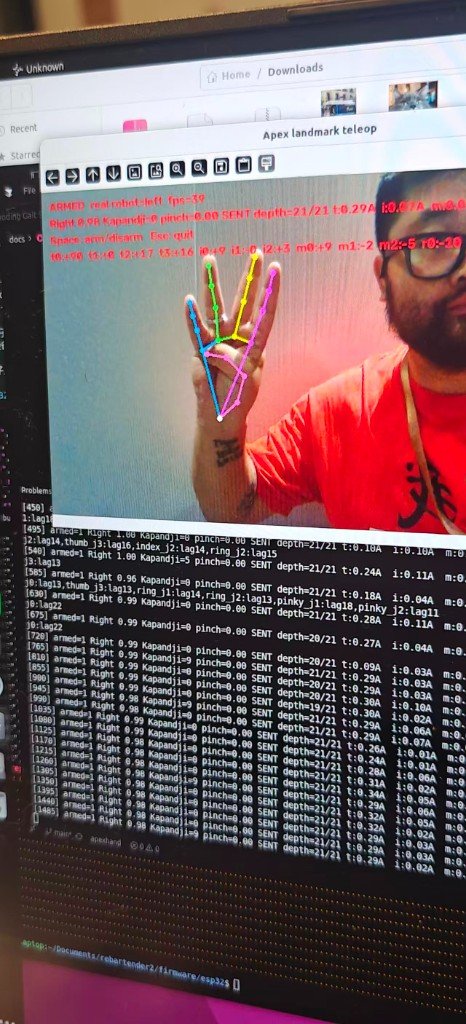

How to read the HUD:

Field	Meaning
ARMED / SAFE	motors enabled or not; Space toggles
robot=left / dry-run / sim	which real hand / not connected / sandbox
fps	actual rate of the whole chain (target --hz 45)
Right 0.98	MediaPipe handedness and confidence; below --min-score 0.65 the last pose is held
Kapandji=9	current opposition score
pinch=0.00	thumb-tip to index-tip pinch amount 0–1, fed forward to the safety layer
SENT / HOLD	whether this frame was sent
CAL37%	bone-length calibration progress (first 90 frames, about 3 s)
depth=17/21	how many landmarks got a measured depth from the D435
t:0.23A i:0.04A …	per-finger motor current; CONTACT thumb means that finger is in current relief
t0:+28 t1:+13 …	the 16 actuated joint targets in degrees; t=thumb, i=index, m=middle, r=ring, p=pinky

---

2. The Pipeline

2.1 MediaPipe has two outputs, each with its own flaws

• image landmarks: sharp in the picture plane, but each axis is normalised separately and depth is only a loose relative value.
• world landmarks: metric 3D, and they do resolve finger curl, but their in-plane placement is a regression with a strong shape prior — a straight thumb's IP reads about 30° bent, a real thumb–index pinch never closes below 0.17 palm widths, and bone lengths swing 20–30% from frame to frame.

HandModel (tracking/hand_model.py) turns the two into one trustworthy skeleton:

1. Fuse: in-plane coordinates from the image head (multiplied by the frame aspect to get one unit, then least-squares scaled onto the world head's picture plane); depth is the mean of both heads — and depth must not be mixed per digit, because the two heads disagree on offset, and a thumb on one scale and fingers on the other would never know when they touch. With a D435, measured metric points replace MediaPipe's guess, and the landmarks the depth camera missed keep MediaPipe's direction in the same metres.
2. 1€ filter: cutoff = min_cutoff + beta × |speed|. A pinching fingertip moves at 0.3–0.5 m/s, so beta has to be of order ten for the filter to open up during motion; the 0.04 that suited normalised image coordinates became, in metres, a fixed 1.2 Hz low-pass that reached a closed pinch seven frames late.
3. Rebuild at calibrated bone lengths: the first 90 frames (about 3 s) take the median length of every bone as this operator's; afterwards every frame keeps the measured directions and replaces the lengths. Filtering must come before the rebuild — the other way round destroys the length constraint just established.
4. Canonicalise chirality: make side × forward always point at the palm. Whether the operator raises the left or the right hand, either drives this left robot hand with no handedness switch beyond --mirror.

Before all of that, world_ok() rejects collapsed or occluded skeletons (palm width outside 2–20 cm, finger length outside 0.25–2.2 palm widths); bad frames hold the previous pose, and only 12 consecutive misses reset the filter.

2.2 Why joint-angle-to-joint-angle mapping cannot do Kapandji

The most direct retarget measures each joint angle of the human hand and writes it to the matching robot joint. For the four fingers that mostly works (open, fist, scissors, one finger up all line up). Not for the thumb. The Apex thumb has four actuated joints:

Joint	Meaning	Range	Human counterpart
thumb_j0	opposition	0–90°	CMC opposition
thumb_j1	abduction	−10–60° (firmware really allows about ≤34°)	CMC abduction
thumb_j2	proximal flexion	0–80°	MCP flexion
thumb_j3	distal flexion	−20–80° (j4 follows 1:1)	IP flexion

The open robot thumb sits 14 cm sideways in the palm; reaching the pinky's MCP needs opposition, a roll of the fold plane and almost all of j2 together. A human thumb laid across the palm is nearly straight — copy its hinge angles and the robot tip ends up 15 cm in front of the pad. Kapandji scores 6–10 all live in that region, so angle mapping gives the thumb "some motion" but never "the motion your hand is making".

2.3 DexPilot vector matching with ten Kapandji sites

tracking/apex_fk.py follows DexPilot (Handa et al., ICRA 2020): instead of matching angles, match site-to-site vectors in the palm frame, and when the operator brings two sites together, project that pair onto contact. DexPilot's sites are four fingertips; we replaced the opposition set with the ten Kapandji sites — six of which are not fingertips but phalanx sides and palmar creases, each needing its own landmark combination (hand_model.KAPANDJI_SITES):

Score	Site	MediaPipe landmark combination
1	side of index proximal phalanx	0.5·(5) + 0.5·(6)
2	side of index middle phalanx	0.5·(6) + 0.5·(7)
3	index tip	8
4	middle tip	12
5	ring tip	16
6	pinky tip	20
7	pinky DIP crease	19
8	pinky PIP crease	18
9	pinky MCP crease	17
10	distal palmar crease	0.30·(5) + 0.45·(17) + 0.25·(0)

"Touching" means the thumb tip's in-plane distance to the site is ≤ 0.25 palm widths (about 1.5 cm) — which is how a clinician judges it, and it makes a frontal camera reading a thumb already on the palm as slightly in front of it harmless. kapandji_score() returns the highest site reached, not the nearest.

The IK uses an analytic Jacobian: every joint is revolute, so a column is simply axis × (point − origin). One FK pass per iteration instead of seventeen finite-difference passes — and it stays correct when a joint sits on a limit, where a clipped probe step would otherwise produce a dead column. This is one of the main sources of the "response speed": the whole chain holds 33–39 fps on the C920.

2.4 Analytic seed, IK finish

retarget.py first computes a good initial guess from geometry:

• Fingers: abduction = yaw of the proximal bone in the palm plane relative to that finger's rest direction; heading = angle between the proximal bone and forward; fold = 0.65 × PIP fold + 0.35 × DIP fold (_DIP_BLEND), because the robot's j3 follows j2, and splitting the human's two joints across the one actuated joint tracks the fingertip heading better.
• Thumb: solve from where the thumb tip sits in the palm frame — j0 (out of the palm / ulnar), j2 (how far the tip has left the radial rest toward the finger row), j1 (how far the fold plane has rolled toward the pinky), and j3 = max(hinge, 0.45·j2) to keep a reachable IP once j2 is up.

ik_hand() then solves the DexPilot objective around that seed, and the result is clipped to JOINT_LIMITS_DEG. Earlier revisions flattened the hand to the image plane and reconstructed the missing depth with tuned "angle floors" (magic numbers like 42°, 52°, 58°); with real 3D all of those are gone — keeping them would only fight the observation.

---

3. Keeping the Fingers From Fighting: How the Safety Layer Serves Teleoperation

One MediaPipe jitter and the index and middle j0 can cross in the palm plane. The simulator has a finger_crossing penalty and a 0.04 abduction scale, but those are for the policy; teleoperation has neither. We use four layers:

Layer	What it does	What the operator sees
Command side	adjacent j0 differences may not let the phalanges cross in the palm plane; if they would, only abduction is clamped, flexion still follows	almost invisible; scissors and fist still work
Hardware cap	--torque-pct 30: on a crossing, abduction cannot push through and nothing gets wrung	holds, does not spring back
Current relief	a finger over its current threshold opens its flex joints by up to 0.04 rad, closing again as current drops	the finger "gives" on contact instead of jamming
Pinch exemption	pinch is fed forward to SafetyFilter; during a deliberate pinch the thumb and index do not trigger relief	the pinch holds instead of letting go the moment it grips

The last one is mandatory: a deliberate thumb–index pinch has exactly the current signature of hitting an obstacle; current cannot tell them apart, only the layer above can say "this one is on purpose". Without a tactile array, pad-on-pad (pinch) and side-on-side (crossing) can only be inferred: landmarks approaching + joints keeping up = performing the motion; landmarks not approaching + abduction lagging = crossing.

SafetyFilter(hold_on_lag=False) — "freeze a joint that lags its target" is right for policy playback (it means we hit something) and wrong for teleoperation, where vision runs ahead of the motors every frame and a freeze is exactly the "stuck finger" the operator complains about.

---

4. The Speed-Related Parameters

Parameter	Default	Effect
--hz	45	control-loop target rate; the SDK side runs 100 Hz
--min-cutoff / --beta	1.2 Hz / 10	1€ filter: smooth at rest, responsive in motion
--ema	0.28	second-stage EMA on joint angles; lower is steadier and duller
--deadzone	0.5°	joint changes smaller than this are ignored, killing rest jitter
--hold-miss	12 frames	frames of lost track before the filter resets
--max-step	0.10 rad	per-tick Δq cap
--max-speed / --max-accel	3.5 rad/s / 40 rad/s²	joint speed and acceleration caps handed to the SDK
MediaPipe model_complexity	1	0 is faster and rougher, 2 more accurate and slower

We did not change the detection model. Late on September 5 we went back and forth on "a heavier hand model? buy a depth camera?" and landed on: fix the thumb semantics of the retarget first, then finish with a 2 ms vector IK — the detector was not the bottleneck.

---

5. That Night: How the Thumb Mapping Got Fixed

September 5, 21:16: a teleoperation video from another team appeared in the group chat, fingertips lining up cleanly. Our four fingers already tracked; the thumb merely "moved". The hand had been taken back for the night; all we had was the Isaac sandbox and --sim.

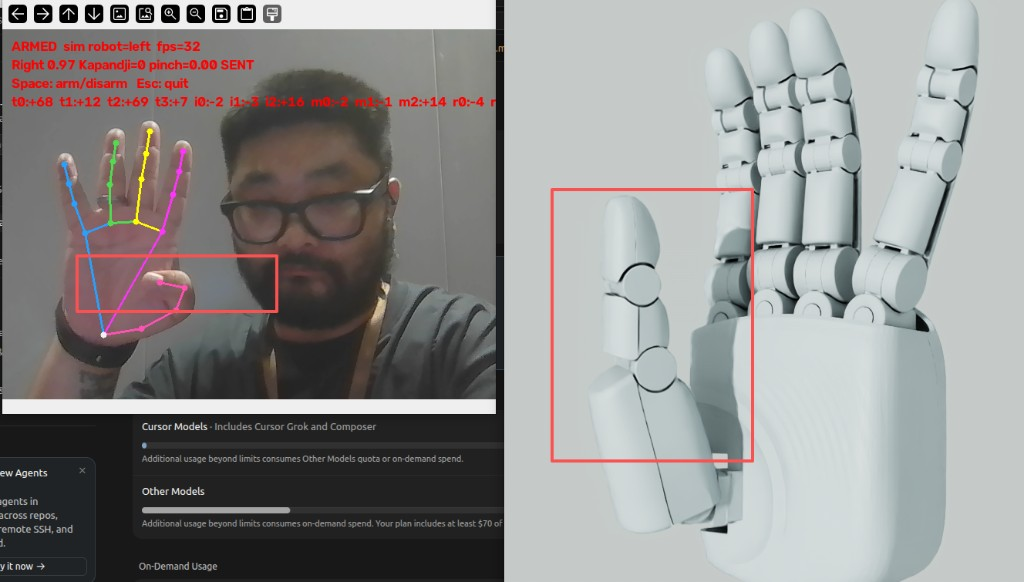

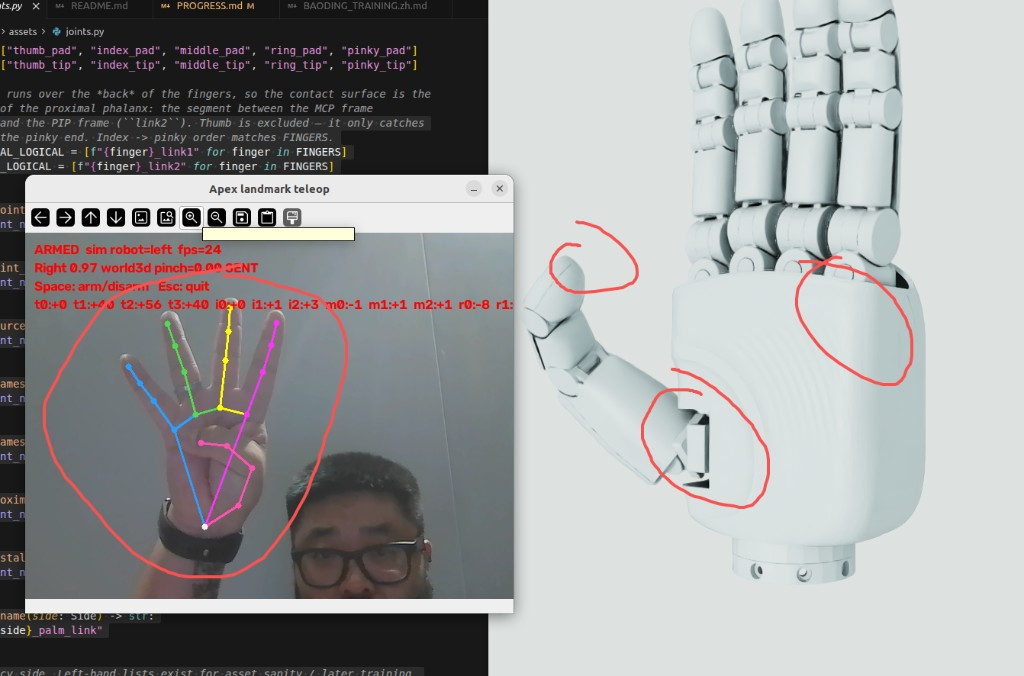

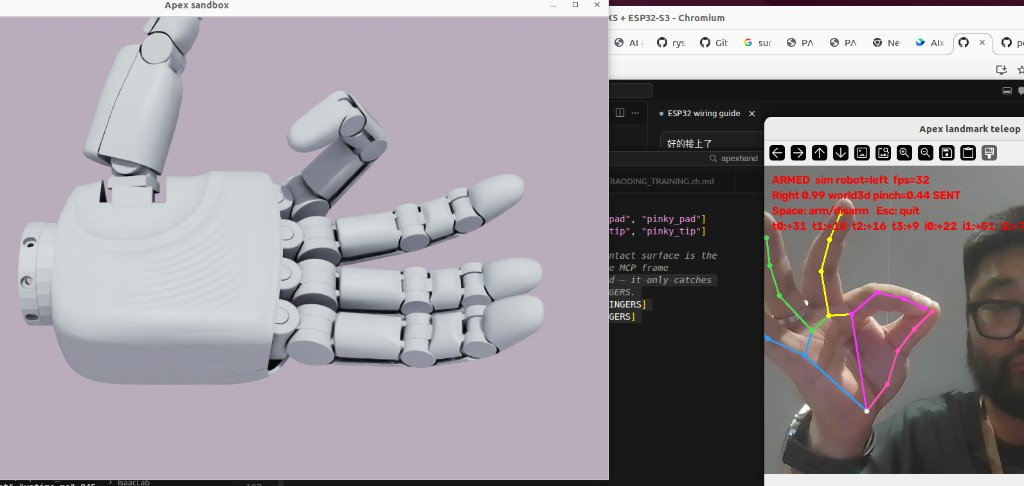

Almost every screenshot from the next five hours has a red circle on it:

In chronological order, the changes stacked up like this:

1. The palm-frame axes were re-bound (palm_basis: side = index MCP → pinky MCP, forward = wrist → midpoint of those two MCPs, normal = their cross product, re-orthogonalised); every heading had been computed in the wrong plane;
2. Finger fold went from "PIP only" to a PIP / DIP blend — the fact that the robot's j3 follows j2 has to be absorbed on the human side;
3. The thumb went from "copy the hinge angles" to "solve four axes from the tip position";
4. We found that world landmarks read a straight thumb's IP as 30° bent and never close a pinch below 0.17 palm widths — that is where the two-head fusion in fuse() came from;
5. The finite-difference Jacobian produced dead columns on limits; replaced by the analytic one;
6. In the morning the RealSense arrived, and the D435's measured depth went into fuse()'s measured argument; thumb Z settled.

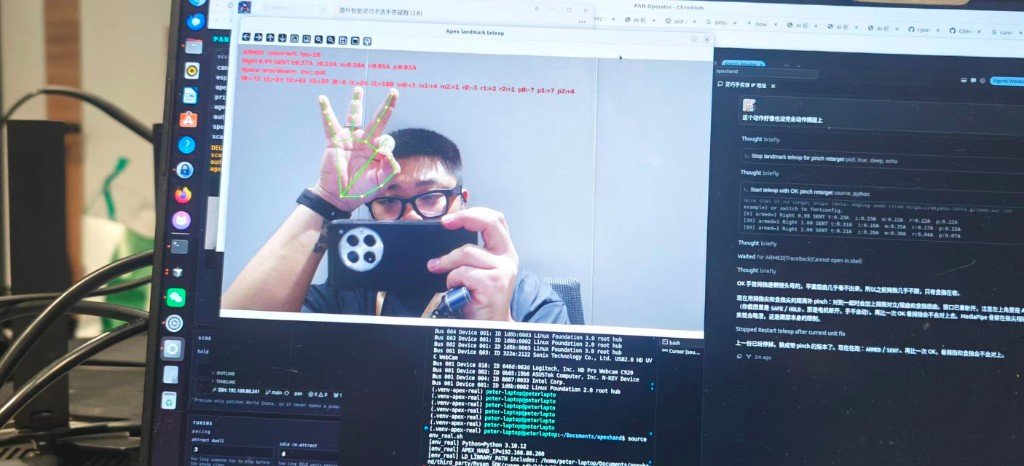

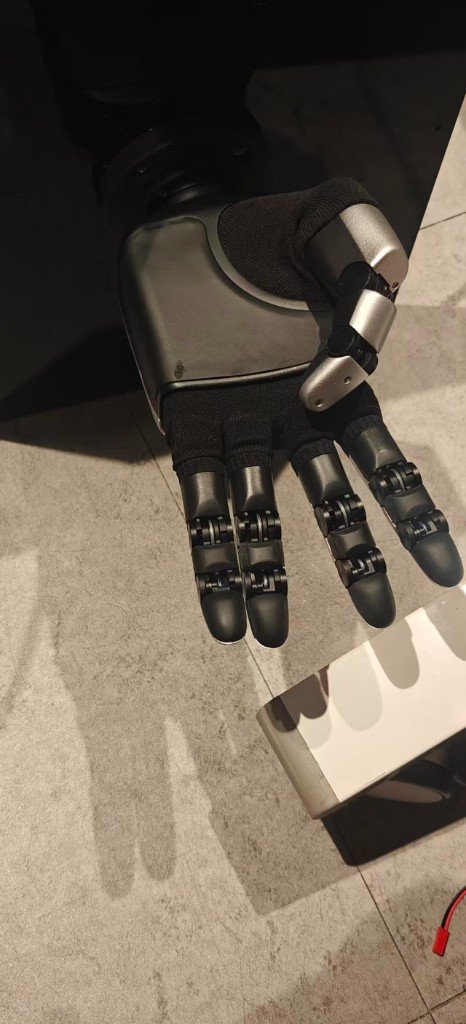

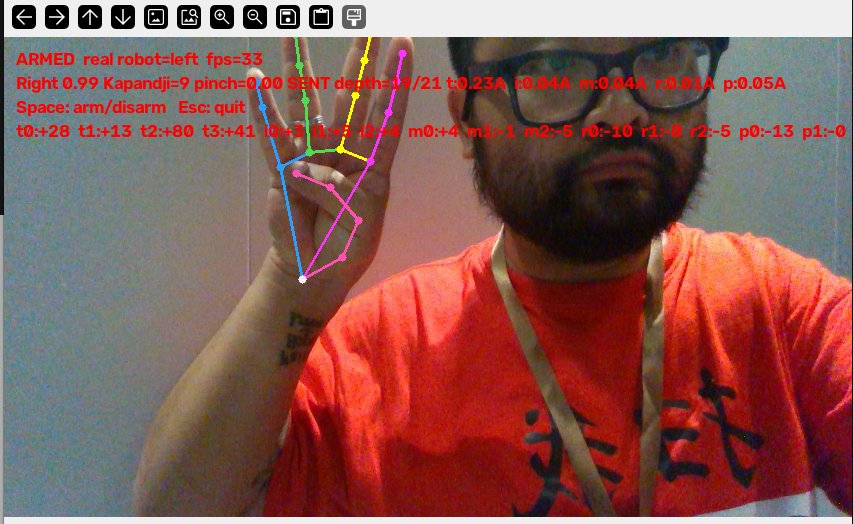

September 6, 08:32: the real hand came back. 08:41: Kapandji = 9 (the image at the top). A stable 10 has not landed yet — for the thumb tip on the distal palmar crease, monocular plus world-landmark depth is still a little short, and the D435 does not add much with the palm facing the camera. That is where this track currently ends.

---

6. One-Click Launch at the Booth

The WebUI launcher (python -m webui, front page) has a "Teleop" group: real-hand connectivity check, landmark teleoperation on the real hand (with RealSense and camera-preview-only toggles), play with the hand in simulation. The card catalogue lives in APPS in webui/launcher.py; no command is hard-coded in the HTML. One job at a time — the real hand, the camera and VRAM are mutually exclusive.

---

7. Pitfall List

1. Open / fist reversed: on the first real-hand run the fold sign was opposite to the URDF's positive direction. Sweep every joint with an open-loop sinusoid first.
2. thumb_j1 out of range drops the whole packet: the URDF says 60°, firmware 3.2.5 rejects around 0.66 rad, and one bad joint freezes all 21. The send path uses the firmware envelope.
3. C920 held by another process: discover_camera() fails silently → fuser /dev/video*.
4. D435 on a USB 2 port: pyrealsense2 reports no usable profile; the error message tells you to move to a blue port and unplug the T265 from the same hub.
5. Units of the 1€ beta: once coordinates changed from normalised image space to metres, beta had to change by orders of magnitude (0.04 → 10) or pinches landed seven frames late.
6. Never reorder joint indices after the fact: ACTUATED_LOGICAL is the only order.
7. Fake current: 449–453 mA is the firmware's full-scale rail; unfiltered, the safety layer believes it is always in contact.

8. File Map

File	Responsibility
scripts/landmark_teleop.py	main loop, HUD, keys, recording
tracking/camera.py	webcam / RealSense frame sources, depth sampling
tracking/hand_tracker.py	MediaPipe wrapper, both landmark heads
tracking/hand_model.py	fusion, 1€, bone rebuild, chirality, Kapandji sites and score
tracking/retarget.py	analytic seed → ik_hand → limits
tracking/apex_fk.py	left-hand palm-frame FK, DexPilot objective, analytic Jacobian
tracking/filters.py	1€ / EMA
real/safety.py	limits, Δq, current relief, pinch exemption
scripts/sandbox_hand.py	the Isaac sandbox (the other half of --sim)

Next: ④ Track 2: baoding balls in RL simulation — a completely different route: instead of a human teaching the hand, the simulator does.
